The Merits Health S549 Mini-Coupe 4 Wheel scooter is a great compact and lightweight mobility option. The lightweight frame and parts combined together, weigh just 72 pounds. When disassembled, this travel scooter can fit in any vehicle, making is a breeze to transport. It can can also be folded to give better ease of handling. Transporting a travel scooter does not have to be complicated; nor does it have to involve strain or stress while disassembling or reassembling.
With this 4 wheel scooter, users can count on a unit is easy to use and is great for just about any customer. This Merits model has a turning radius of 43 inches which makes it easier to negotiate turns and other obstructions that are a result of thinner hallways. It comes in handy in homes, medical facilities, and grocery stores, apartments, just to name a few places!
Merits Health S549 Mini-Coupe Benefits Features:
- Auto latch that separates frame with a push

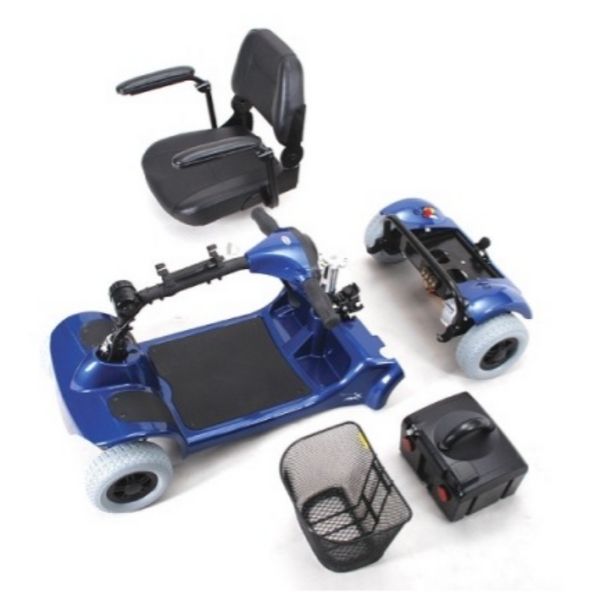

- Easily disassembles for transportation
- Designed for travelers who enjoy taking their scooter on the road.
- Ideal for both indoor and outdoor use
- Easy access charger socket on tiller
Owner Manual
Model | S549 |
---|---|
Weight Capacity | 250 lbs |
Maximum Speed | Up to 4.5 mph |
Range | Up to 8 miles |
Ground Clearance | 2.5" |
Turning Radius | 43" |
Overall Length | 39.8 |
Overall Width | 20" |
Overall Height | 32" |
Seat Width | 16.5" |
Seat Depth | 16.5" |
Seat Height | 32" |
Seat Back Height | 14" |
Seat height (from deck) | 16.5" |
Seat height (from ground) | 18.5" |
Motor | DC 24V, 110W |
Controller | S-Drive 45A |
Casters | 8" foam filled tires |
Drive Tires | 8" foam filled tires |
Brake | Intelligent, regenerative, electromagnetic |
Total Weight Without Batteries | 50.7-lbs |
Total Weight With Batteries | 94.7-lbs |
Base weight | 57.3-lbs |
Battery weight (each) | 22-lbs |
Seat weight | 15.4-lbs |
Battery Requirements | 12V/15AH x 2pcs |
Battery Charger | 1.5 Amp Off Board |
Gradient | 6° |
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
Manufacturer Warranty
18 Months For Electronic Controllers, Harnesses,
Chargers, Motors
